Ondulé

Quick Info

Project Date April 5, 2017 - Oct. 20, 2019
Keywords: fabrication, Design tool, kinetic fabrication

News

Liang He Gives UIST'19 Talk on Ondulé

Oct 22, 2019 | Jon

Liang He gave a fantastic talk on "Ondulé: Designing and Controlling 3D Printable Springs" at UIST'19, the top technical conference in HCI. Liang was also the web co-chair for the UIST'19 website. Thanks Liang for all your hard work!

Ondule Accepted to UIST 2019!

Jul 10, 2019 | Liang

We were excited that our paper entitled "Ondulé: Designing and Controlling 3D Printable Springs" was accepted for publication at UIST'19. This work was led by UW CSE PhD student Liang He, and co-authored by Huaishu Peng (UMD CS), Michelle Lin (UW CSE Undergrad), Ravikanth Konjet (Microsoft), François Guimbretière (Cornell), and Jon Froehlich.

About

Ondulé Applications

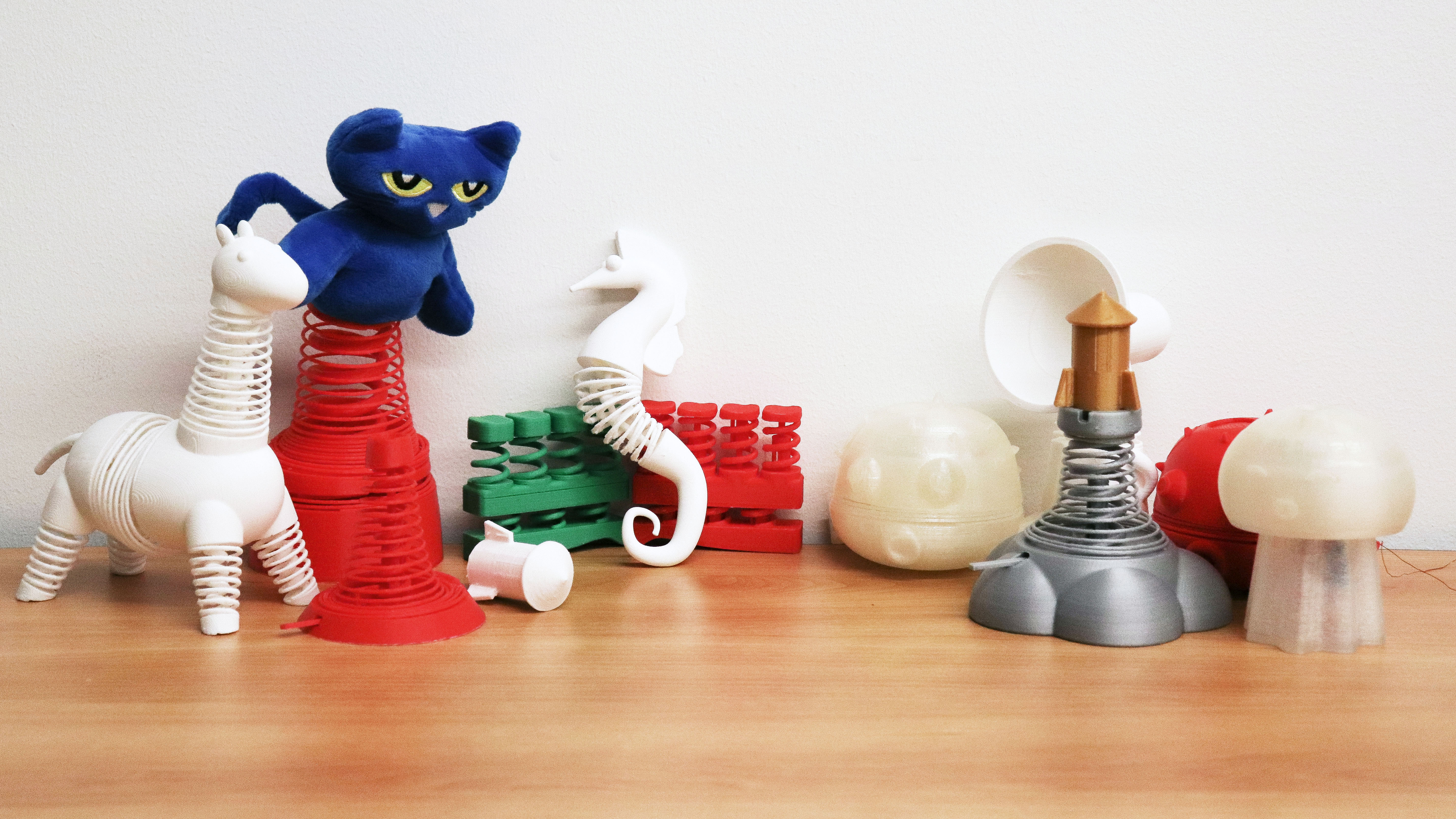

This is the set of example applications created with Ondulé design tool.

We present Ondulé—an interactive design tool that allows novices to create parameterizable deformation behaviors in 3D-printable models using helical springs and embedded joints. Informed by spring theory and our empirical mechanical experiments, we introduce spring and joint based design techniques that support a range of parameterizable deformation behaviors, including compress, extend, twist, bend, and various combinations. To enable users to design and add these deformations to their models, we introduce a custom design tool for Rhino. Here, users can convert selected geometries into springs, customize spring stiffness, and parameterize their design with mechanical constraints for desired behaviors. To demonstrate the feasibility of our approach and the breadth of new designs that it enables, we showcase a set of example 3D-printed applications from launching rocket toys to tangible storytelling props. We conclude with a discussion of key challenges and open research questions.

Publications

Ondulé: Designing and Controlling 3D Printable Springs

Liang He, Huaishu Peng, Michelle Lin, Ravi Konjeti, François Guimbretière, Jon E. Froehlich

Proceedings of UIST 2019 | Acceptance Rate: 24.4% (93 / 381)

keywords: 3d printing, fabrication, 3d-printed deformation behaviors

PDF | doi | Citation | Talk • Ondulé

Designing 3D-Printed Deformation Behaviors Using Spring-Based Structures: An Initial Investigation

Liang He, Huaishu Peng, Joshua Land, Mark Fuge, Jon E. Froehlich

Extended Abstract Proceedings of UIST 2017

keywords: mechanical springs, 3d printing, fabrication

PDF | doi | Citation • Ondulé

Videos

Ondulé UIST'19 Talk

YouTube | Ondulé

Ondulé: Designing and Controlling 3D Printable Springs

YouTube | Paper | Ondulé

Designing 3D-Printed Deformation Behaviors Using Spring-Based Structures: An Initial Investigation

YouTube | Paper | Ondulé

Talks

Ondulé: Designing and Controlling 3D Printable Springs

Oct. 22, 2019 | UIST 2019 Technical Paper Talk

New Orleans

PDF | PPTX | Video | Paper | Ondulé

Designing 3D-Printed Deformation Behaviors Using Spring-Based Structures: An Initial Investigation

Nov. 15, 2017 | UW CSE Affiliates 2017

Paul G. Allen Center

Making with a Social Purpose

Oct. 13, 2017 | DUB Retreat

University of Washington, Seattle
