About

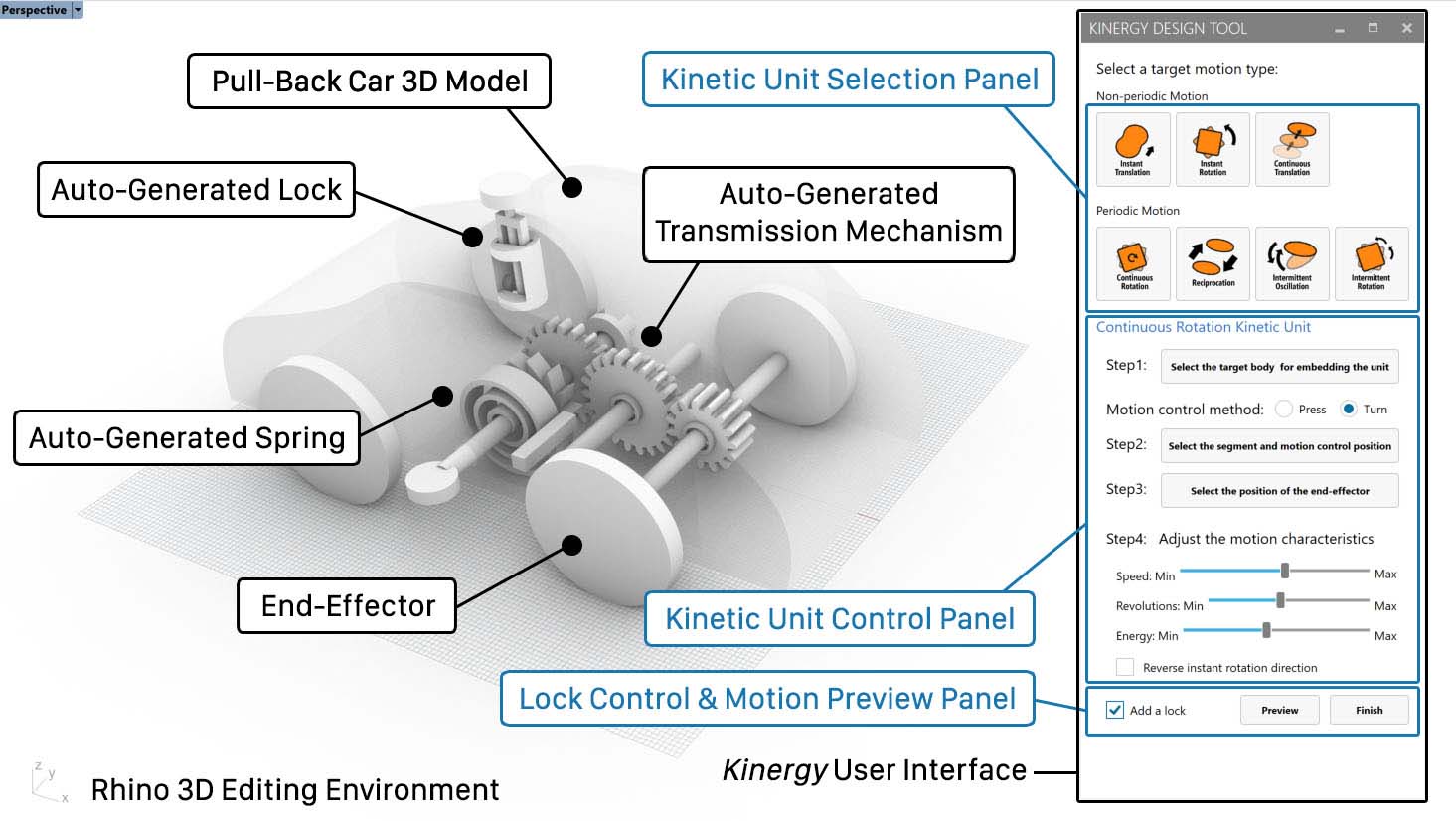

Kinergy Interface

Kinergy provides an easy-to-use interface to enable users embed 3D printable motions into their selected models.

We present Kinergy—an interactive design tool for creating self propelled motion by harnessing the energy stored in 3D printable springs. To produce controllable output motions, we introduce 3D printable kinetic units, a set of parameterizable designs that encapsulate 3D printable springs, compliant locks, and transmission mechanisms for three non-periodic motions—instant translation, instant rotation, continuous translation—and four periodic motions— continuous rotation, reciprocation, oscillation, intermittent rotation. Kinergy allows the user to create motion-enabled 3D models by embedding kinetic units, customize output motion characteristics by parameterizing embedded springs and kinematic elements, control energy by operating the specialized lock, and preview the resulting motion in an interactive environment. We demonstrate the potential of our techniques via example applications from spring loaded cars to kinetic sculptures and close with a discussion of key challenges such as geometric constraints.
